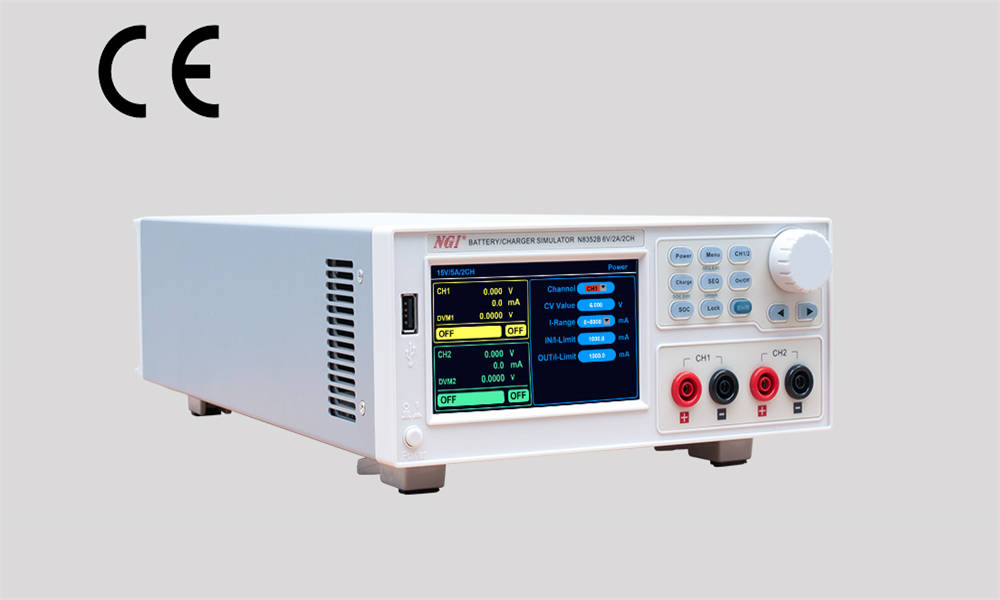

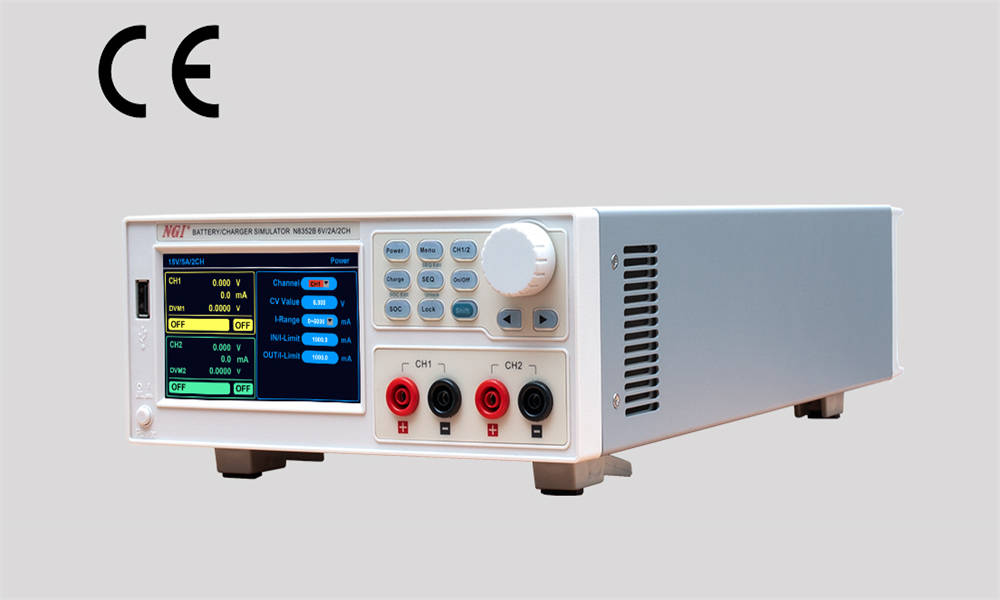

I-N8352 Isifanisi Sebhethri sokunemba okuphezulu okuphezulu kwe-Bidirectional (0~6V/0~15V/0~20V,2CH)
Uchungechunge lwe-N8352 luklanyelwe ngokukhethekile i-R&D kanye nokuhlolwa kwemikhiqizo ephathwayo esebenza ngebhethri, njengamahedisethi e-Bluetooth, amaselula, amatheminali ahlakaniphile e-AR/VR, amathuluzi kagesi, njll. Okwamanje kuhamba kuzo zombili izinkomba futhi kungasetshenziswa njengesiphakeli samandla. noma umthwalo. I-N8352 kulula ukuyisebenzisa ngesikrini sokuthinta kanye nomklamo we-UI. Izici zokukhiphayo ziqhathaniswa namabhethri angempela, anokusabela okuguquguqukayo okusheshayo, akukho kudubula ngokweqile ekukhuphukeni nasekuweni kwe-voltage, kanye ne-waveform ezinzile.Ukunemba kwamanje kufika ku-μA, engahlola ukusetshenziswa kwamandla amile. I-N8352 ifakwe isikrini sokuthinta esingu-4.3 inch futhi ine-DVM engu-2-channel eyakhelwe ngaphakathi, engasetshenziswa kabanzi ekuhlolweni kwe-electronics yabathengi.
Izici main
●Voltage range：0-6V/0-15V/0-20V
●Current range：-1~1A/-2~2A/-3~3A/-5~5A
● Umsindo we-Voltage ripple uphansi ukuya ku-2mVrms

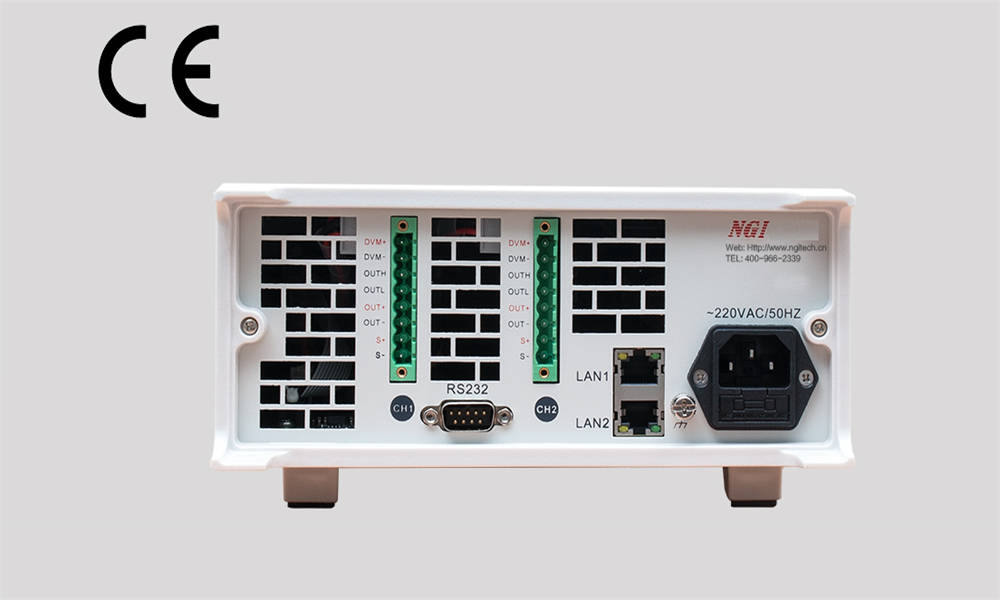

●Imbobo ye-LAN ekabili nesixhumi esibonakalayo se-RS232
●Ukunemba kwamandla kagesi kufika ku-0.01%+1mV
●μA izinga lokulinganisa lamanje
●Impendulo eguquguqukayo eshesha kakhulu ngaphandle kwe-overshoot
●Isilinganiso se-DVM esakhelwe ngaphakathi seziteshi ezimbili ezinemba okuphezulu
●Isikrini sokuthinta esichazayo esiphezulu
Amasimu Wokufaka Isicelo
● Ukuhlolwa kwebhodi lokuvikela ibhethri
●Ukuhlolwa kwedivayisi yokulungisa ibhethri
● I-R&D yabathengi ephathekayo kanye nokukhiqizwa, okufana namaselula, ama-earphone e-bluetooth, njll.
● Ukuhlolwa kokukhiqiza amathuluzi kagesi, njengesishayeli sesikulufa sikagesi
Imisebenzi Nezinzuzo
Imodi Yamandla
Njengokuphakelwa kwamandla eziteshi ezimbili, abasebenzisi bangabeka i-voltage ephumayo kanye nenani lomkhawulo wamanje ophumayo ku-N8352. I-N8352 ihlinzeka ngobubanzi bamanje abaningi obungathuthukisa ukuphuma nokunemba kwesilinganiso.
Ukulingisa Ibhethri
Iziteshi ezimbili ze-N8352 zinikeza ukusetha okuzimele kwe-voltage yokuqala, ukumelana kwangaphakathi, umthamo webhethri namanye amapharamitha ahlobene, nokufunda emuva ngesikhathi sangempela. Ingasetshenziselwa ukuxazulula ubunzima bokungalawuleki kwepharamitha kubhethri langempela ekuhlolweni kanye nokuthuthukisa ukusebenza kahle kokuhlolwa.
Ukulingisa Iphutha

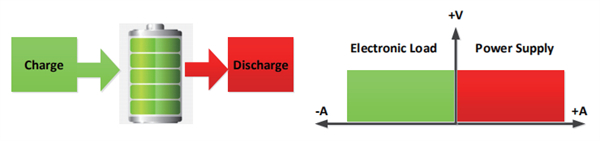

I-N8352 ihlinzeka ngalezi zindawo ezinephutha ezilandelayo: isekethe evulekile ye-positive & negative, ukuxhumeka kwe-polarity okuhlanekezelwe kanye nesifunda esifushane. Yamanje ageleza kuzo zombili izinkomba ukwenza i-N8352 kokubili amandla kagesi kanye nomthwalo. I-current igeleza nhlangothi zombili. I-N8352 ingancela futhi ikhiphe yamanje. Itheminali yokukhiphayo inemojula yokushintsha, enganqamula ngokoqobo kwisekethe yangaphandle esimweni esivaliwe.

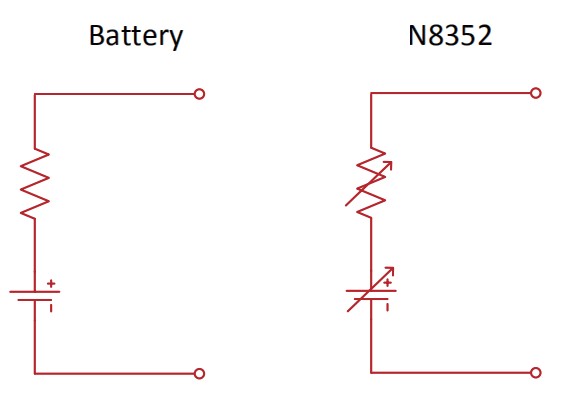

I-impedance yokuphumayo eguquguqukayo evumela ukulingisa ukumelana nebhethri kwangaphakathi
I-N8352 inomsebenzi wokulingisa wokumelana nebhethri kwangaphakathi, futhi isekela uhlelo lwenani lokumelana. Ibanga elihlelekayo lingu-0-20Ω, elingalingisa igrafu ehlukile ehambisana nezici zangempela zokumelana nebhethri.

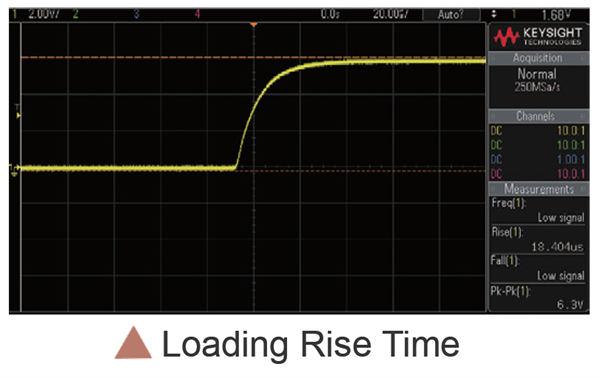

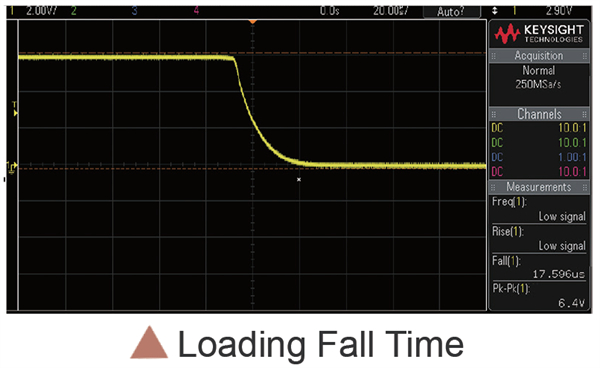

Impendulo yesikhashana eshesha kakhulu ngaphandle kwe-overshoot
Uchungechunge lwe-N8352 lungaqinisekisa ukuthi akukho kudubula ngokweqile ekushintsheni kwamandla kagesi ngaphansi kwesimo sokungalayishi noma ukulayishwa, kuvimbele ukulimala kwe-DUT ngenxa yokushajwa kukagesi kanye nokuphuma ngokweqile. Ingagwema umphumela omubi kwikhwalithi yomkhiqizo. Lesi sici singahlangabezana nesidingo sokuhlolwa komkhiqizo ngezidingo zamandla eziqinile.

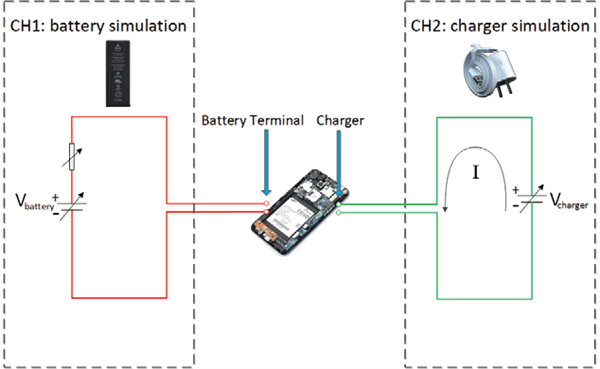

Isicelo--Isivivinyo Seselula
Ama-electronics amaningi abathengi anikwa amandla yibhethri ye-Li-ion, ikakhulukazi ama-smartphone. Izinkinga zempilo yebhethri ziba sobala. Ukulawulwa kokuhlolwa kwebhethri kuya ngokuba nzima. Uma iqhathaniswa nebhethri langempela, inezinzuzo ezilandelayo zokusebenzisa isifanisi sebhethri. Ingakwazi ukulingisa igrafu yokushintsha ibhethri futhi ifinyeze umjikelezo wokuhlola. Ukuthembeka kwedatha yokuhlola kungathuthukiswa ngokuhlolwa okuphindaphindiwe kumodeli ethile.
Zombili iziteshi ze-N8352 zingashaja futhi zikhiphe. Ngakho noma isiphi isiteshi singasetshenziswa njengesiphakeli samandla, sixhuma kutheminali yamandla eselula. Esinye ishaneli singasetshenziswa njengebhethri, ukuxhuma kutheminali yebhethri yeselula. Kokubili ukusebenza kokushaja nokukhipha kungahlolwa ngaphandle kokushintsha izintambo. I-N8352 eyodwa ingasetshenziselwa ukuhlola ibhodi lokuvikela nokukhipha ngaphandle kokushintsha okwengeziwe, okunciphisa kakhulu inkimbinkimbi yesistimu yokuhlola futhi kuthuthukise ukuzinza nokusebenza kahle kokuhlola.
Izinzuzo zokulingisa ibhethri VS amabhethri wangempela
● Ifanele noma iyiphi imodeli yebhethri
● Ukuhlolwa kokusetshenziswa kwamandla okungashintshi
● Umsebenzi wokuphuma kokumelana okuguquguqukayo wangaphakathi
● Ukulingisa iphutha okwakhelwe ngaphakathi
● Iphuzu lokuqala lokulingisa ibhethri lingasethwa ngokungafanele.
● Imisebenzi yokuvikela enamandla, ngaphandle kwezingozi nezingozi zokuphepha kwebhethri
